Forage Grass Crusher
Products description:
Grass crusher machines are mainly used to cut crop straw and forage grass, because most of the cuts are roughage, suitable for cattle, sheep and other livestock farmers. Generally speaking, grass crushers are divided into two types: motor and diesel engine trailer, and can also be equipped with gasoline engine and diesel engine. They can be apply to cut all kinds of wet and dry crops, corn stalk, rice straw, wheat straw, bean stalk, bean stalk, green grasses, sorghum stalk with big capacity. It is suitable agricultural equipment for cattle, farm, farmer which is feeding cow, horse, sheep, deer, rabbit and others.
The technical parameters:
Model | BT-0.5T | BT-2T | BT-3T | BT-6T | BT-10T |
Capacity（t/h） | 0.4-1.5 | 1-2.5 | 1-3 | 2.5-6.5 | 3-10 |
Matching power(kw) | 3 | 4 | 4 | 7.5 | 15 |
Motor rotary speed (r/min) | 2800 | 2800 | 1440 | 1440 | 1440 |
Blades dish speed (r/min) | 950 | 1100 | 800 | 650 | 500 |
Weight(kg) | 50 | 115 | 150 | 420/460 | 800/880 |

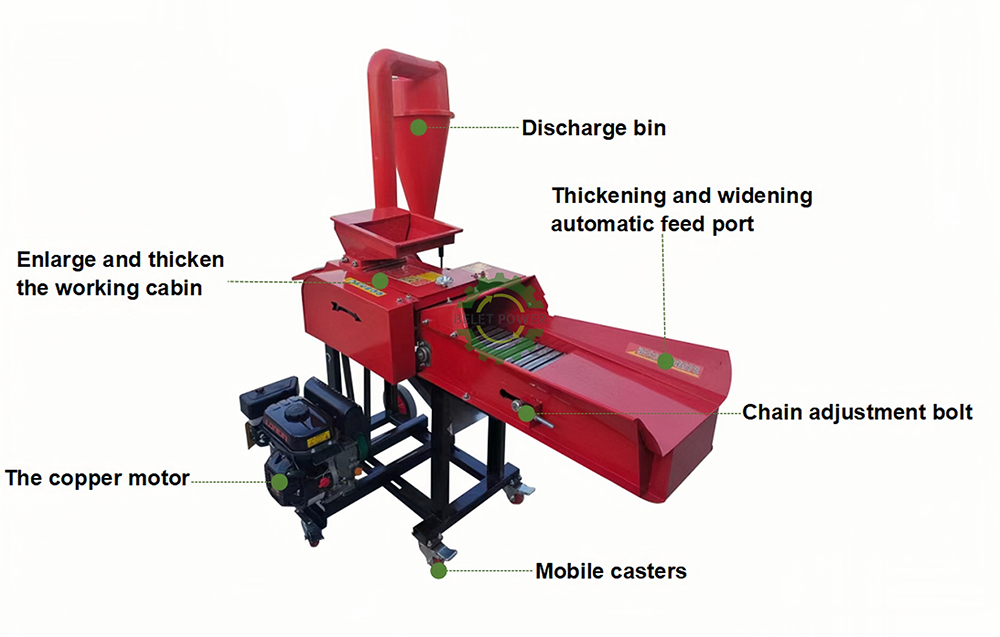

The structure:
Raw materials:
Rice straw, green straw, dry straw, wild grass, wheat straw, corn stalk, grass, elephant grass hay, grain straw, peanut seedlings, sweet potato seedlings, pennisetum, hydridum, corn cob, corn fine, corn coarse grain, sugarcane head...
The features:
1. This machine has beautiful appearance, with full steel body, thick steel, coated by baking varnish craft, bright color, good durability, corrosion resistant, durable.
2. High capacity of feeding port, long range of chaff discharging, high capacity of corn silage making.
3. Suppliers can manufacture electric motor, diesel engine and gas engine type chaff cutter according clients' demand, or clients can buy motor or engine in their domestic market suppliers will prepare motor or engine.
4. It improves the utilization value of forage grass, the forage silage more fresh than green feed, nutrition will not be reduced.
5. There is a sweet sour, after silage, can remove the odor and toxins, stimulate livestock appetite, increase feed intake.
6. It has a good role in promoting on the animals' growth and development, and can be preserved for a long time, can reduce the parasitic disease.
7. Blades both side can be use, they are wearable.
The advantages:
1. The design of grass crusher machine is unique and novel, high stability, safe work and low noise, long service life.

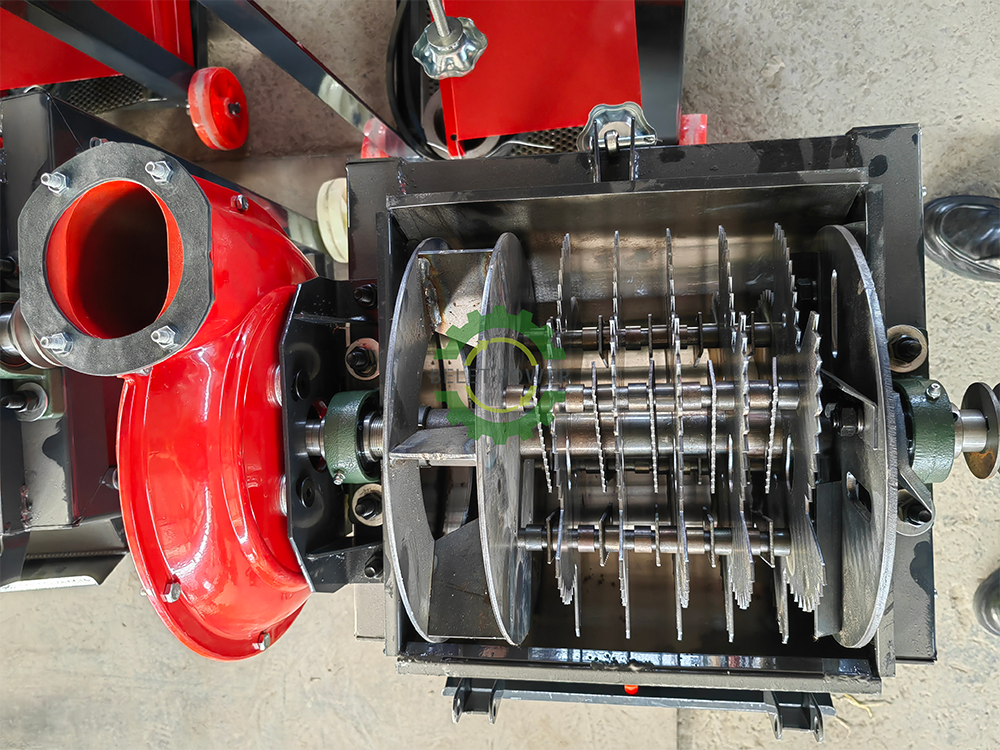

2. The blade with double-sided serrated knife can ensure the static balance and stability. It is good at cutting and grinding the feed, improving the crushing rate at the same time.
3. It is suitable for ranches and specialized feeding households’ different needs of animal breeding.
4. It has hay straw cutting, kneading and crushing effect, so improve feeds utilization and more delicious for animals.
5. With low noise, low fuel consumption, sufficient power, easy maintenance, wide application, energy saving and environmental protection, low failure rate.
Production process:
When the machine is running, the material is processed from the hopper into the crushing chamber, which is broken by the blow of the high-speed rotating working parts. At the same time change the the material movement direction. Because of the high speed rotation of working parts, the material layer is destroyed, the material is moving with the rotor. In this process, due to the repeated collision of forage or particles by working parts and the body friction, the the material is crushed to geometric diameter smaller than mesh diameter. Under the action of centrifugal force and air flow, crushed material through the sieve hole leak into the powder chamber, which can be discharged from outlet, the cutting forage can be sprayed from top discharge port.

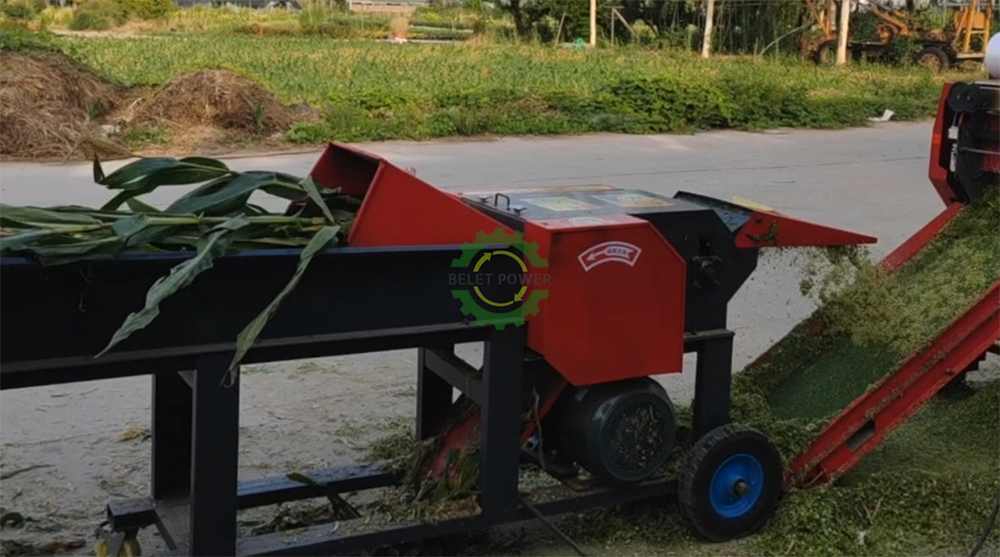

The application:
Grass crusher machines are mainly used to crush crop straw, forage grass, and so on. Because most of the crushed grass is roughage, it is suitable for livestock farmers such as cattle, sheep, chicken, ducks, fish and other farm animals.
