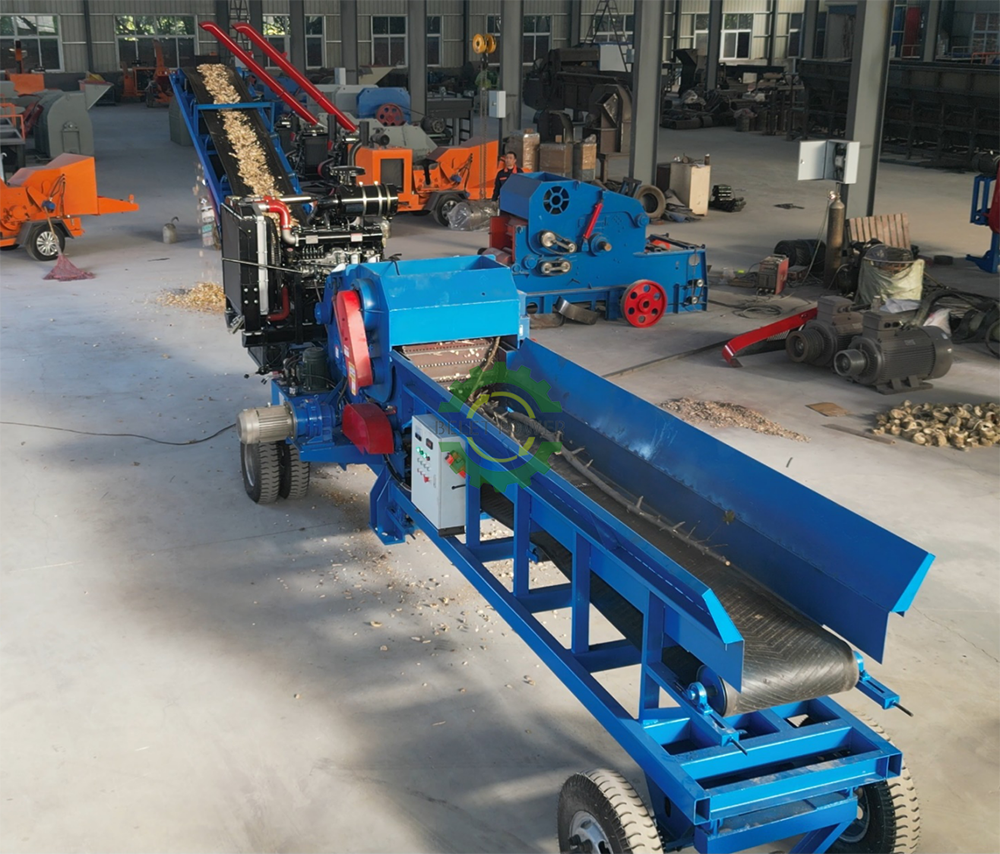

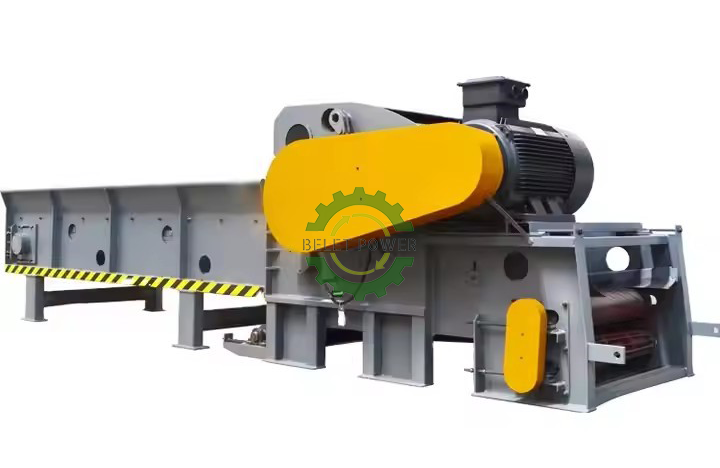

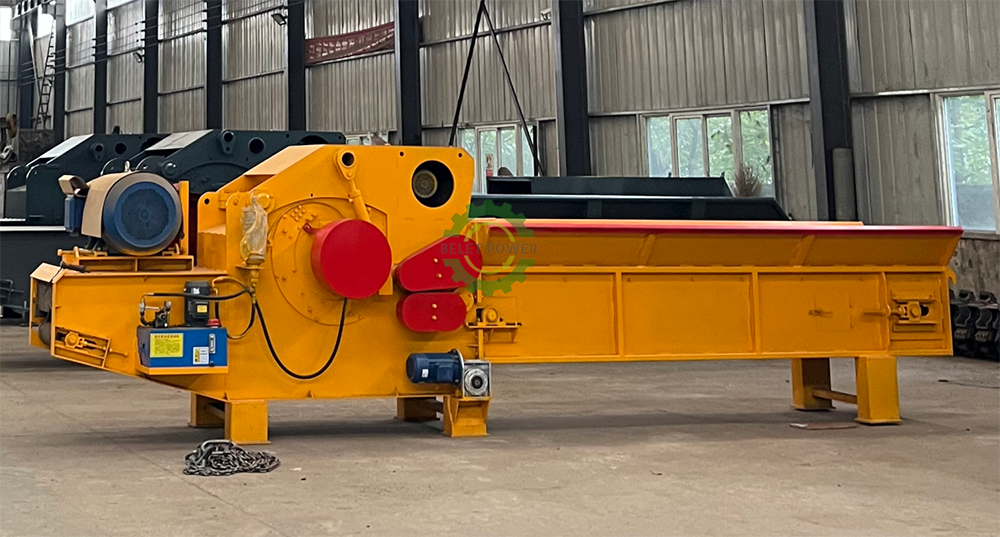

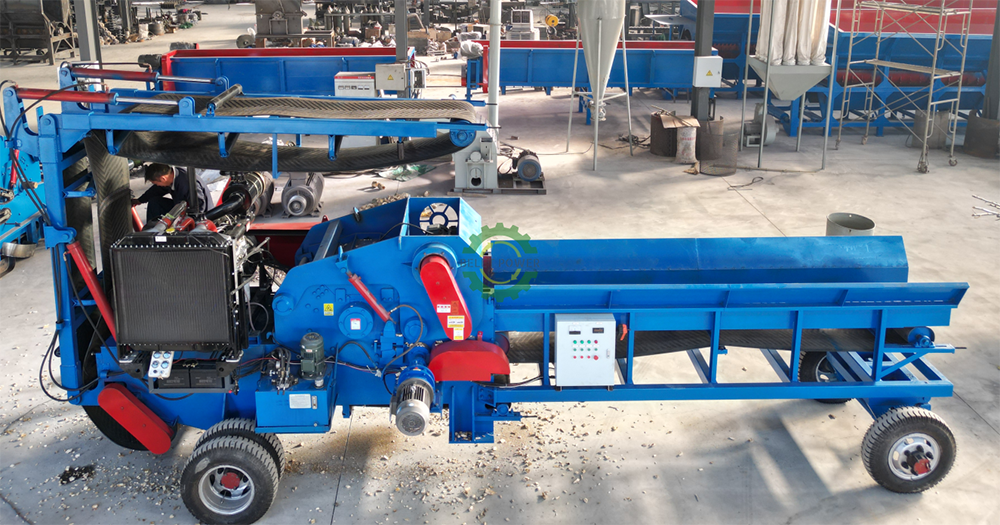

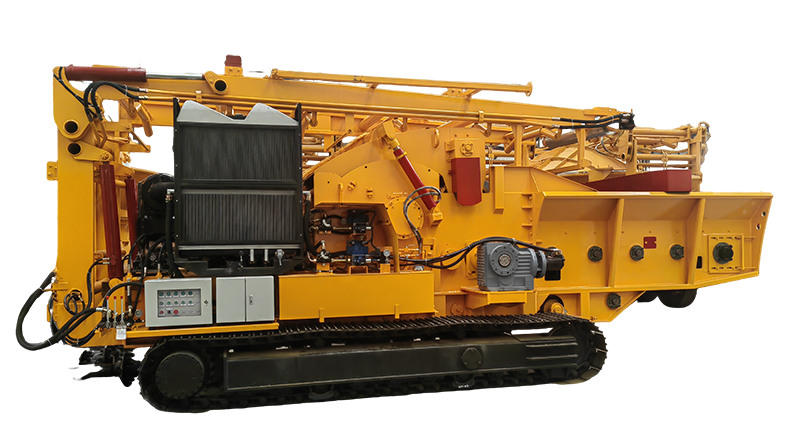

Horizontal Wood Chipper
The horizontal grinder is expert in making woods into wood chips. It can be driven by a diesel engine or an electric motor, its high speed rotating blades are capable of crushing wood of various hardness and density, and the hydraulic forced-feed system facilitates reduced bulk and fast feeding of fluffy branches. The front pressure roller can prevent the material from flowing back. So it can efficiently process logs, trees, straw, wood pallets, waste wood and other organic materials into valuable end products.
Horizontal grinders are ruggedly constructed and available in a variety of configurations for large land clearing, municipal waste and composting operations.
The technical parameters:
Model | BT1300-300 | BT1300-600 | BT1400 | BT1650 | BT1800 |
Power(kw) | 110 | 160 | 220 | 320 | 500 |
Capacity(t/h) | 6-10 | 12-15 | 15-20 | 18-25 | 25-35 |
Feed Port size(cm) | 1300*300 | 1300*600 | 1400*600 | 1650*600 | 1800*1000 |
After chipping size(mm) | 30-100 | 30-100 | 30-100 | 30-100 | 30-100 |
Biomass raw materials:
Logs, branches, dried branches, building formwork, wooden pallets, scrap furniture, bamboo, straw, tree root, French sycamore, apple tree, pine tree, peach tree, poplar...
The features:
1. Remote control
When the machine is jammed, the metal chain conveyor, pressure roller and rotor with blades rotate in opposite directions at the same time to discharge the jammed materials. Effectively reduce damage to equipment.
2. Automatic feeding system
Effectively reduce the volume, so that it can be transported in containers.For outdoor work, the belt conveyor can transport the shredded wood chips to the trucks.
3. The hydraulic system
It does not depend on power and is still reliable in harsh environments, cooperate with the intelligent feeding system to achieve accurate and stable control of feeding and discharge.
4. Maintenance-friendly design
The upper cover can be easily opened by the hydraulic system for inspection and maintenance.

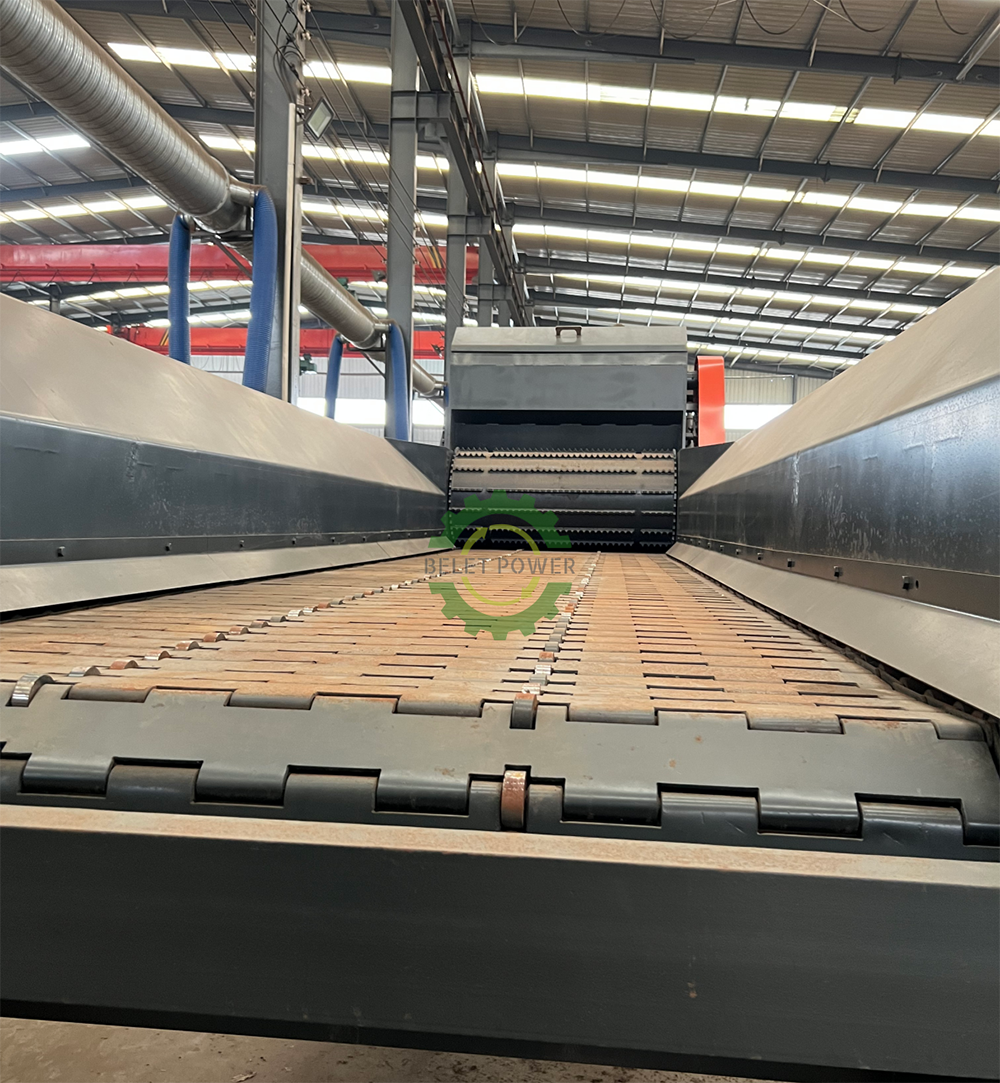

5. Steel chain feed conveyor
The steel conveyor is strong and durable, and has an automatic reversing function synchronized with the feed rollers to avoid blockage.
6. Discharge screen
Made of thickened high wear-resistant steel plate, it has an extra-long service life and the hole diameter is determined according to demand.
The advantages:
1. Diesel engines from international well-known brands as option, meeting different demands of customs.
2. According to the size of the wood,the hydraulic system automatically lifts the pressure roller, increase the crushing area and the production capacity.
3. The discharge belt conveyor effectively reduce the volume, so that it can be transported in containers for outlook work, the belt conveyor can transport the shredded wood chips to the trucks.
4. Through the use of advanced power system and energy saving design, the energy, consumption is reduced by more than 20%, saving a lot of costs and improving the production efficiency.
Production process:
The wood is fed in from the feed port, and when the wood contacts the cutting blade, it is cut as the cutting disc rotates at high speed, and the cut wood chips are sent out in the cutting chamber by the high-speed steam flow generated by the fan blades on the cutting disc. The machine can adjust the cutting blade according to the needs of customers to produce wood chips of different specifications and thicknesses. The production efficiency of the horizontal grinder is very high, and it can achieve continuous feeding and discharging, which can basically meet the needs of customers for large-scale production.
The application:
The main raw materials for wood chippers are small-diameter wood, wood felling, processing residues (such as branches, laths, laths, log cores, waste veneer, waste wood...), and can also be used to cut non-wood materials (such as sugar cane, reeds, bamboo...). The raw materials are cut into small wood chips of corresponding specifications and used as raw materials for particleboard, medium-density fiberboard, fiberboard, paper-making, biomass fuel and so on.

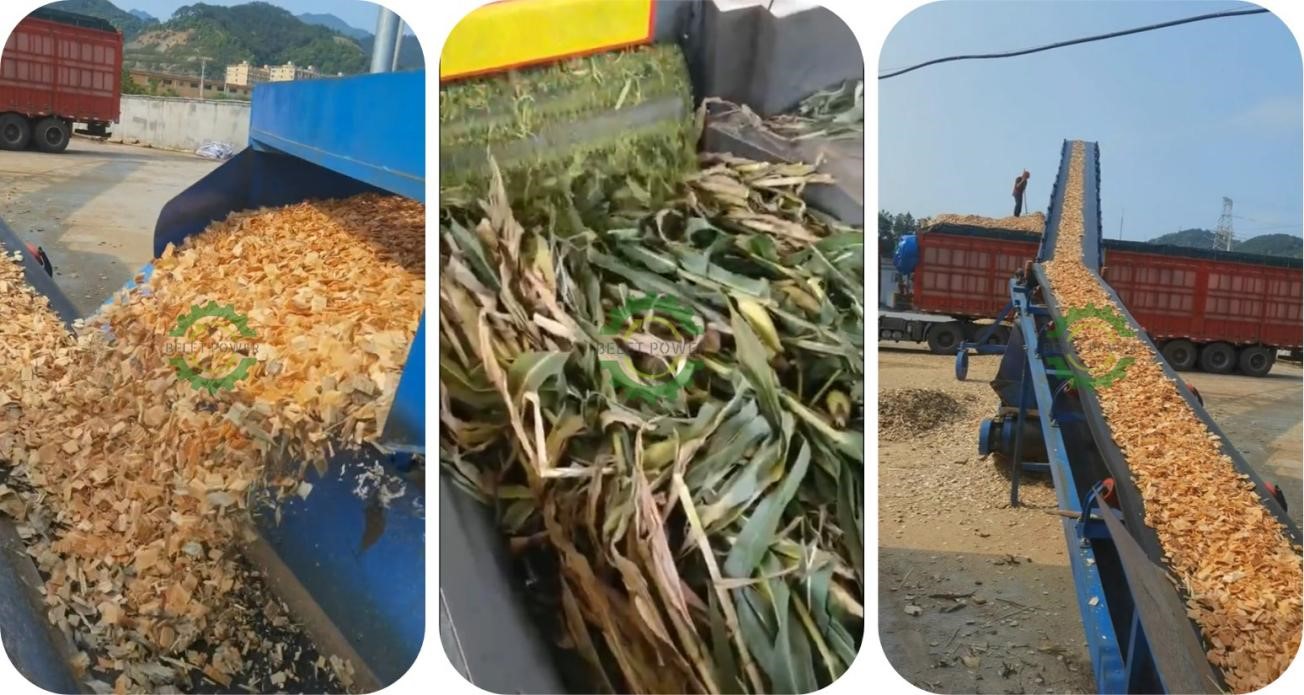

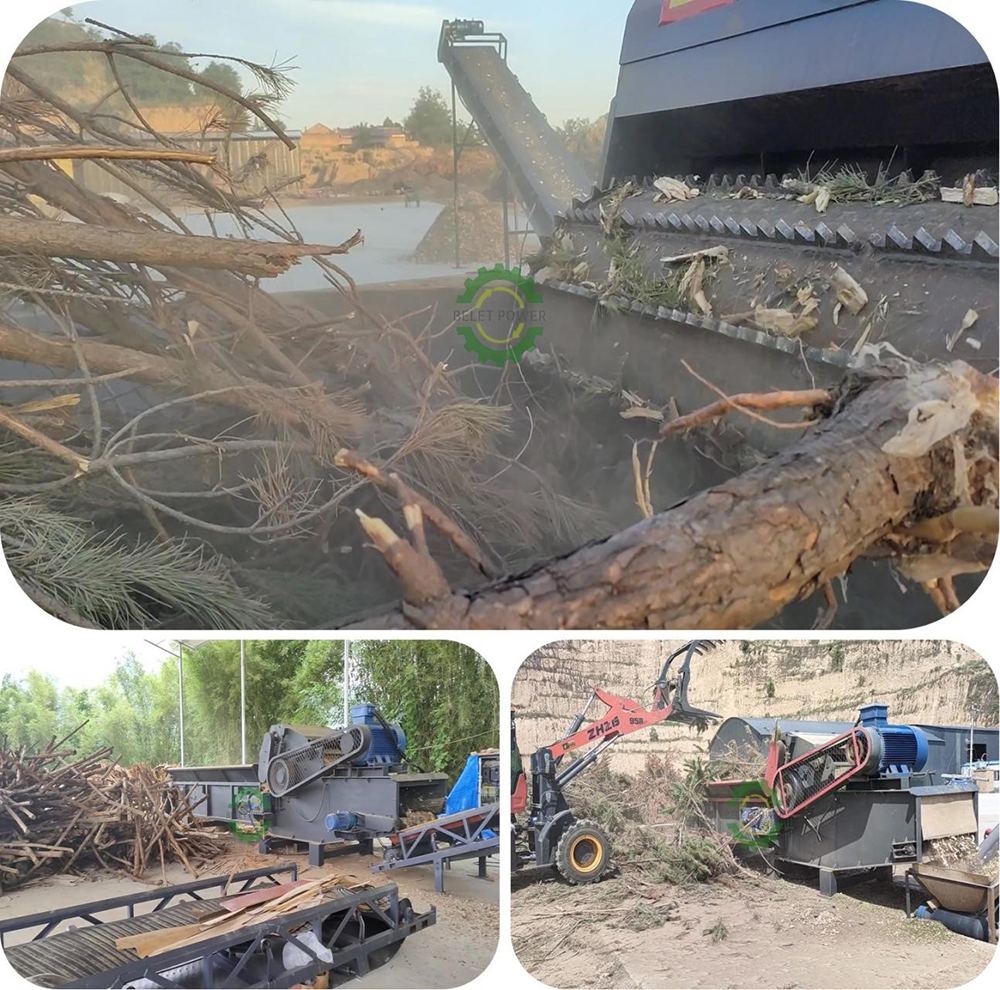

Wood chipper plant from Customers:
