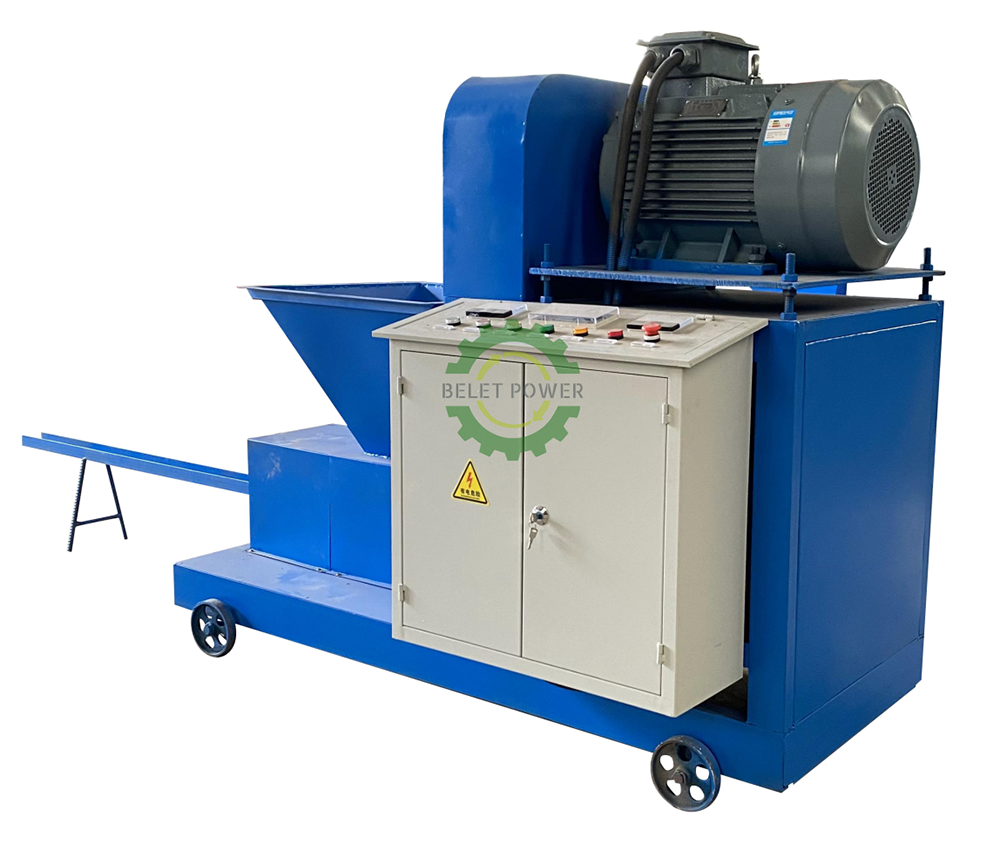

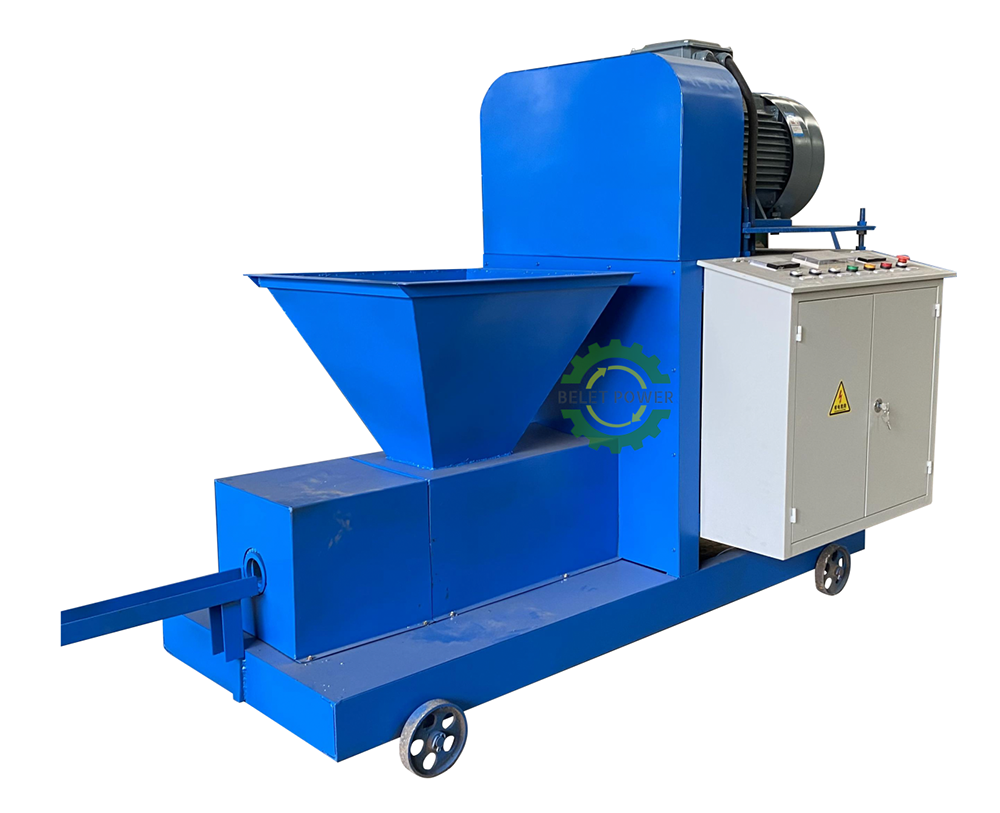

Wood Charcoal Making Machine

Products description:

Charcoal production machine is a charcoal forming equipment that uses the principle of screw extrusion to compress the modulated pulverised coal into a predetermined shape with a certain strength. It is one of the main equipments in the complete set of fuel moulding section of ammonia fertilizer plant and gas plant gas making system, which is a new process of extruding the fuel pulverised coal into round (or hexagonal or square) charcoal with certain strength, and then burn it into the gas making furnace to replace the traditional process of burning briquettes and briquettes to make gas. It can make full use of coal, in the production process it does not need to be mixed with lime, reducing the cost of fuel, and improves the calorific value of coal.

The parameters:

Raw materials:

Rice husk, straw, corncob, branch, bagasse, sesame stalk, peanut shell, waste wood, wood log, coconut shell, wheat straw, coffee husks, sawdust, pulverized coal, cool lump, semi-coke, grasses.

The features:

1. The machine is made of coal and charcoal powder into wood sticks. It can also be applied to charcoal powder, rice husk charcoal powder, charcoal powder...

2. The shape of the stick can be made according to the customer's requirements, such as round, hexagonal, cinnamon shape, with or without holes.

3. The products made by this machine are pollution-free and smoke-free. It is the best machine for you.

4. For the length, it has an automatic cutter. Customers can cut it manually.

5. The impeller and inner lining of the cylinder are made of wear-resistant materials, with long sevice life.

6. The gear of the reducer is driven by two-stage cylindrical gears, which can operate in both positive and negative directions.

The advantages:

1. The coal and charcoal bar extruder machine can be used for pressing different molds of briquettes by

replacing matching moulds. The customers can purchase complete machine with other kind of moulds,  then the machine can be multipurpose, and the customers can save capitals.
2. Besides the normal products, suppliers can also design and manufacture special moulds as the customers’ requirements.
3. The briquette making machine can produce honeycomb briquettes, also it can press powder materials into other shapes.

4. It does not need the carbonization drying equipment, does not require steam, saving investment, reducing the occupying area and improving the higher economic efficiency.

5. The finished briquettes have good performance, high density, easy to transport, the final product is smokeless, environmentally friendly and improves the reuse of waste.

The Structure:

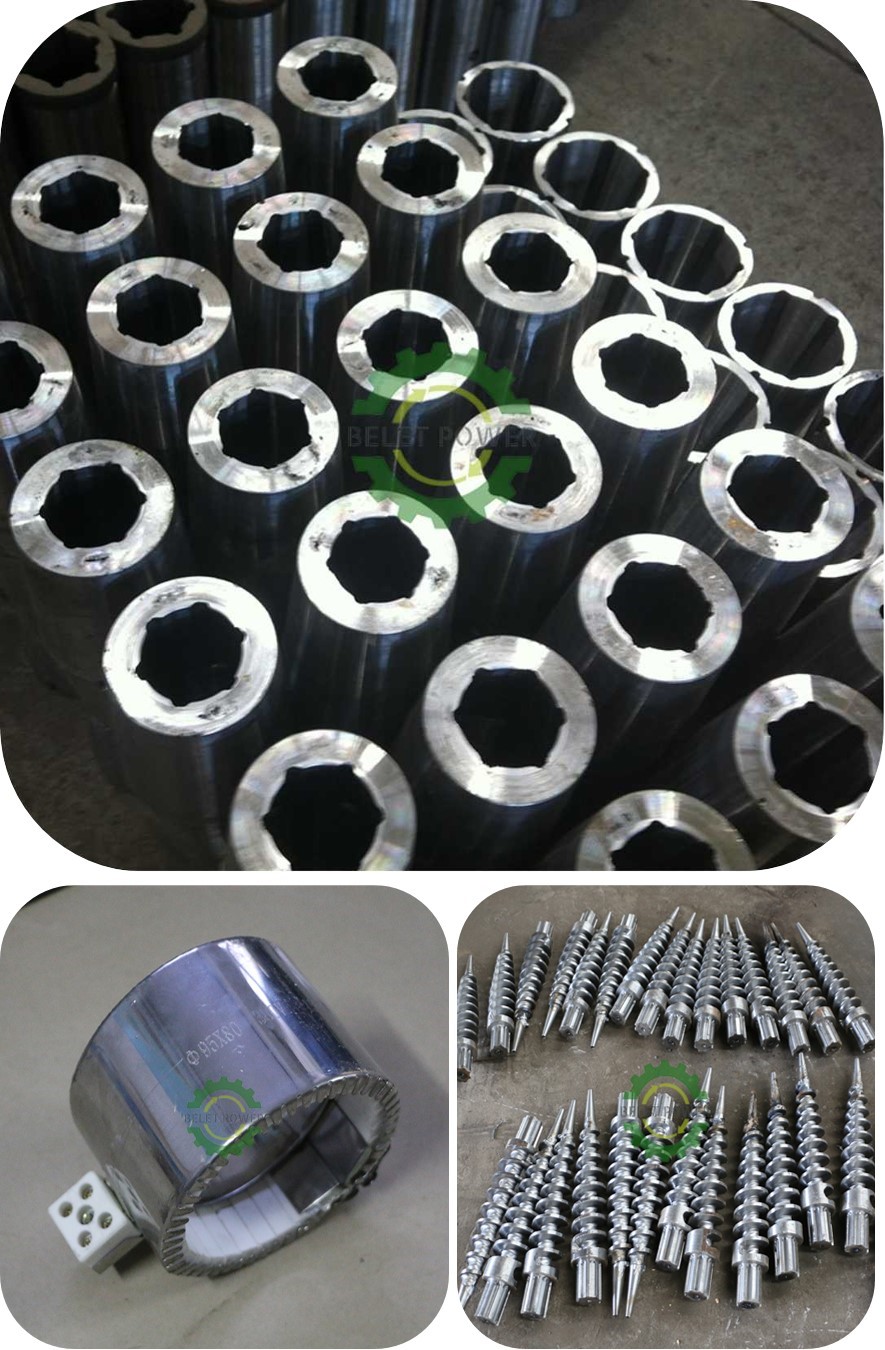

The complete set of charcoal production line includes briquette making machine, carbonization furnace, dryer and other equipment. But for the briquette making machine, includes the molding dies, heating rings, thrusters, etc.

Production process:

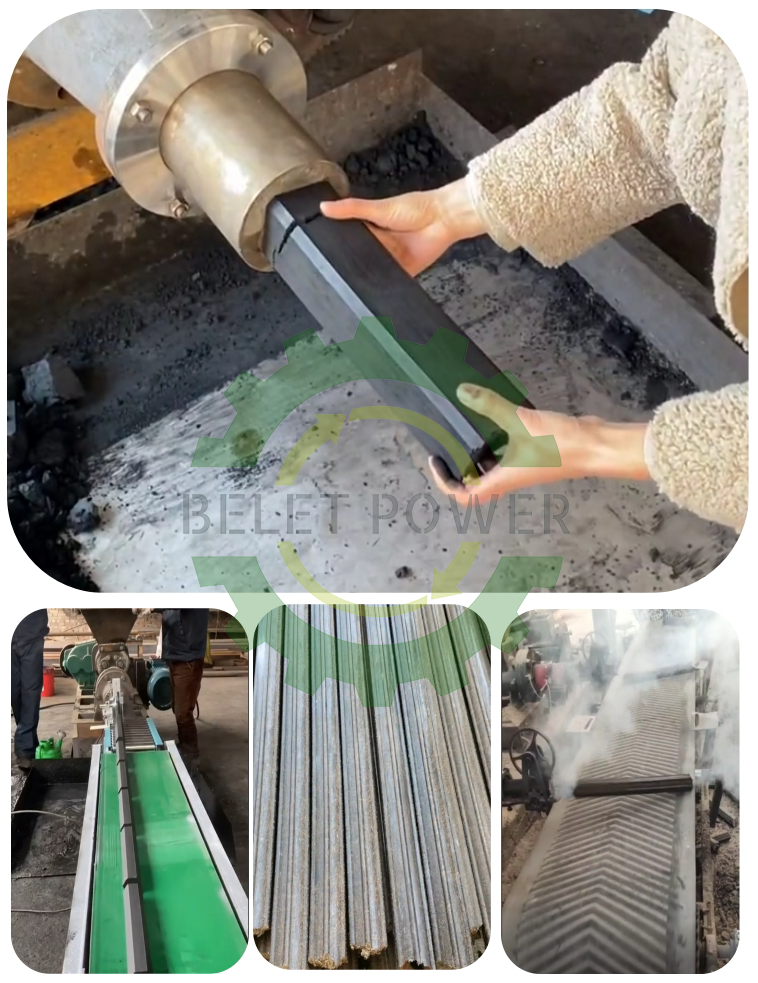

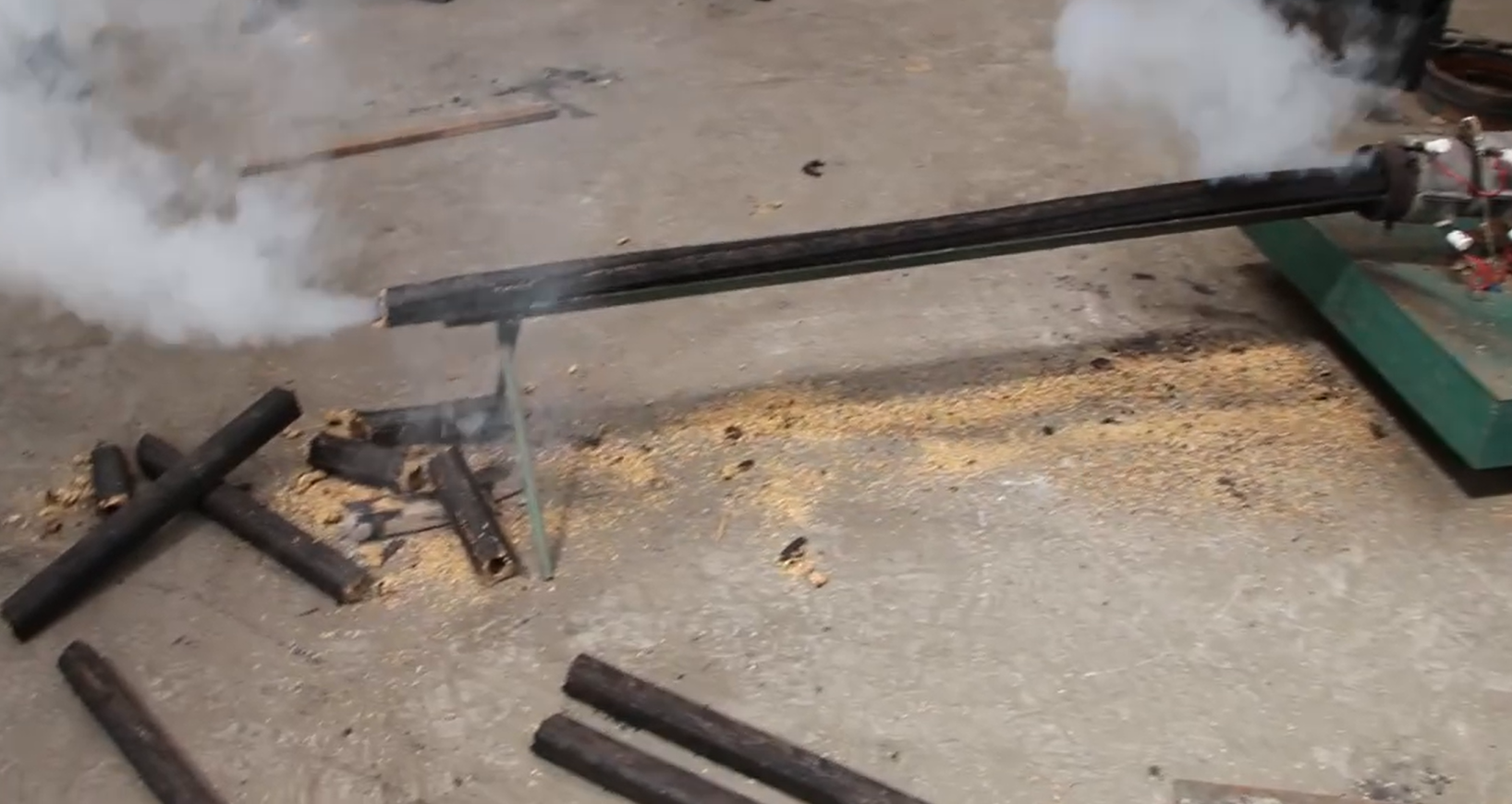

The motor transmits power to transmission through the belt. At the same time, the transmission output shaft transmits power to propeller through the floating coupling, and the thruster of propeller push forward coal through forming die to produce the ideal high-pressure coal-stick.

The applications:

1. Industrial uses.

2. It’s used for smelting high-quality non-ferrous metals and cast iron.

3. As a carburizing agent for mechanical parts, it can improve the hardness and wear resistance of the surface of steel parts.

4. It is mixed with potassium nitrate and sulfur to make gunpowder.

5. Agricultural Uses

(1) Increase ground temperature

After applying charcoal powder to the soil, the black charcoal particles absorb solar heat, which can increase the soil temperature by several degrees Celsius and promote seed germination. In particular, it can promote the germination of seeds that are difficult to germinate and increase the germination rate.

(2) Improve the quality of soil

After adding charcoal powder to the soil, rhizobacteria can be generated on the surface of the charcoal, thus forming agricultural soil suitable for plant cultivation, avoiding the so-called "continuous farming obstacle"; and charcoal can improve the growth, color and taste of grains, beans and vegetables.

6. Daily Uses

(1) People often use charcoal for heating, barbecue, and hot pot. Because it has no smoke, high

heat and long burning time, it is becoming more and more popular.

(2) Charcoal can help preserve food and is used as a deodorizer on refrigerators.
