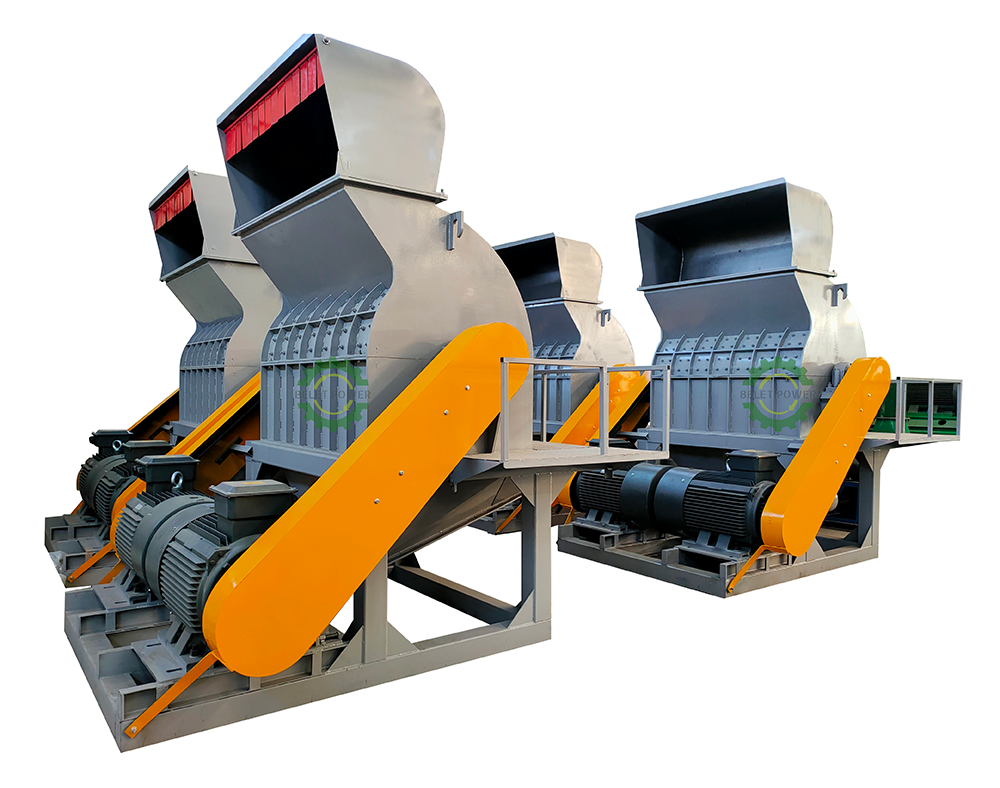

High-Efficiency Wood Crusher
The high-efficiency wood crusher is a high-speed machine that uses a sharp blade on one side and an impact blade on the other side, so that the material to be pulverized is sheared by the high-speed blade. The machine can also use blades of various shapes and sizes according to different materials, and the particle size can be obtained by changing the mesh or adjusting the speed.
The technical parameters:
Maximum Feed opening size | Spindle speed (r/min) | Motor power (kw) | Output (ton) | Size (mm) | |
500 | 720*280 | 2300 | 18.5-22 | 0.8-1.5 | 2195*1260*1400 |
600 | 820*310 | 2300 | 30-37 | 1-2.5 | 2550*1360*1500 |
800 | 1000*320 | 2300 | 45-55 | 2.5-4 | 2700*1170*1620 |
900 | 1100*380 | 2300 | 55-75 | 3-5 | 2900*1410*1800 |
1000 | 1250*410 | 2200 | 75-90 | 4-6 | 3200*1700*1800 |
1300 | 1380*520 | 2100 | 55*2 | 5-8 | 3400*1860*3620 |
1500 | 1520*820 | 1800 | 75*2 | 6-9 | 3510*2160*4050 |
1800 | 1840*910 | 1800 | 90*2 | 7-10 | 4120*2560*4300 |
Biomass raw materials:
Pine, miscellaneous wood, poplar, fir, bamboo, thatch, corn stalks, sorghum stalks, wood, wood shaving, rice straw, wheat straw, tree, tree branches, paper, coconut shell, car bumper, fishing net, plastic bottle, planks, plastic bucket, circuit board, cardboard box...
The features:
1. Reasonable design, compact structure, safety, durability, high production efficiency.
2. The whole set of equipment is driven by only one motor to make the rotor rotate at high speed.

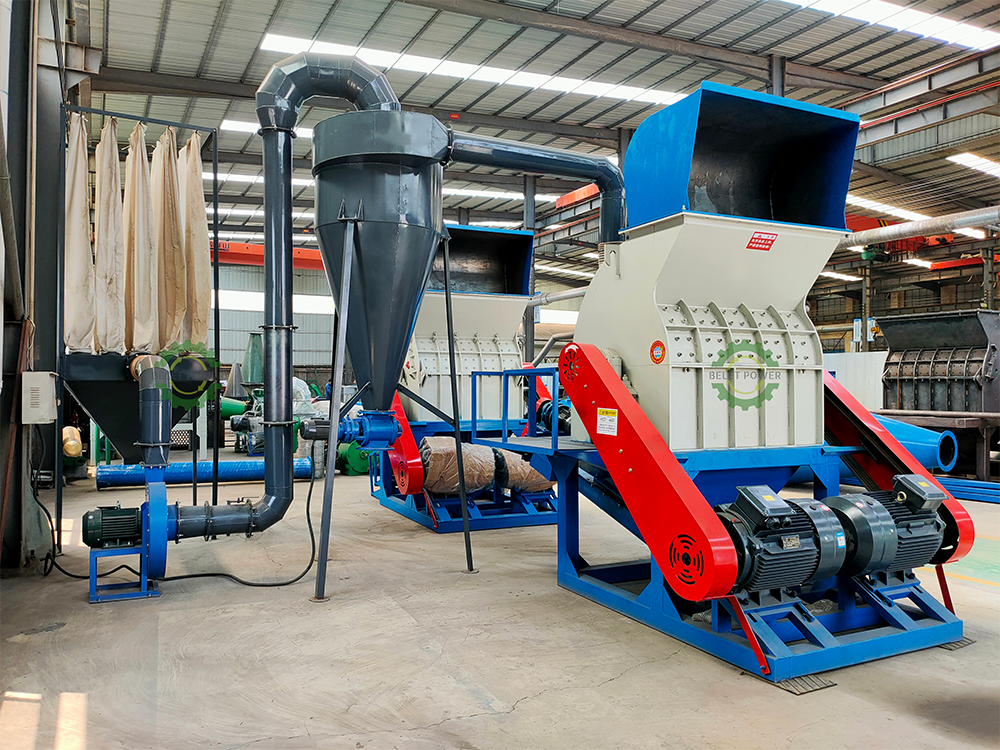

3. Equipped with auxiliary equipment such as fans and powder collectors. The fan generates airflow to help the materials disperse and collide better in the crushing chamber, and the powder collector is used to collect and process the generated dust to keep the working environment clean.
4. Blades of various shapes and sizes can be selected according to different materials, and the particle size can be obtained by replacing the mesh or adjusting the speed.
5. All parts of the grinding chamber of the high-efficiency wood crusher machines that come into contact with the materials are made of stainless steel, which is acid-resistant and corrosion-resistant.
The advantages:
1. High-efficiency wood crusher machines have stable operation, easy movement, low noise, good crushing effect, and low power consumption.
2. Hammer by carbon steel can be made of wood for multiple impact crushing, and then improve the crushed rate, and can use both sides of the hammer, one side is broken, the user can replace it.
3. The cutting blade adopts high quality alloy cutting tools, the cutters are hard, wear resistant, cutting sharp.
4. Sieve mesh size can be customized to meet the size requirements of different uses.
5. The main part of the machine is through the dynamic balancing equipment ensure machine can safely run and improve production efficiency.
Production process:
The high-efficiency wood crusher machine integrates the dual crushing functions of blade cutting and high-speed airflow impact and collision, and can also complete the fine material sorting process at the same time. During the blade cutting and crushing process, the rotor generates high-speed airflow, which rotates in the direction of the blade cutting. The material is accelerated in the airflow, and the repeated impact causes the material to be double-crushed at the same time, accelerating the crushing of the material, and finally discharged from the discharge port.
The application:
The crushed materials are widely used in the preparation section of industrial production such as paper-making, edible fungi, machine-made charcoal, particleboard, sawdust board, high-density board, medium-density fiberboard, and a single sawdust and wood chaff production base.
