Double Shaft Wood Shredder
The double shaft wood shredder can generally be used to shred solid materials such as plastic, rubber, fibers, paper, wood, electrical components, cables... that are difficult to break, such as nozzle materials, rubber heads, PET bottles, cardboard, circuit boards, wood, plastic barrels, etc. As long as the material is difficult to pulverize, the product that enters the shredder becomes granular.
The technical parameters:
Model | Power(kw) | Shredding chamber size | Capacity | Dimensions | Weight |
400 | 7.5*2sets | 400*360mm | 500kg/h | 2000*900*1200mm | 1500kg |
600 | 11*2sets | 600*450mm | 800kg/h | 2500*1400*1700mm | 2200kg |
800 | 18.5*2sets | 800*560mm | 1000kg/h | 3500*1700*2200mm | 3000kg |
1000 | 30*2sets | 1000*650mm | 1500kg/h | 3800*1800*2200mm | 4000kg |
1200 | 45*2sets | 1200*780mm | 2000kg/h | 4200*2000*2200mm | 4500kg |
1400 | 75*2sets | 1400*860mm | 3000kg/h | 4500*2100*2200mm | 5000kg |
1600 | 90*2sets | 1600*950mm | 5000kg/h | 4700*2200*2300mm | 6000kg |
1800 | 110*2sets | 1800*1100mm | 7000kg/h | 5600*2300*2300mm | 6500kg |
The structure:

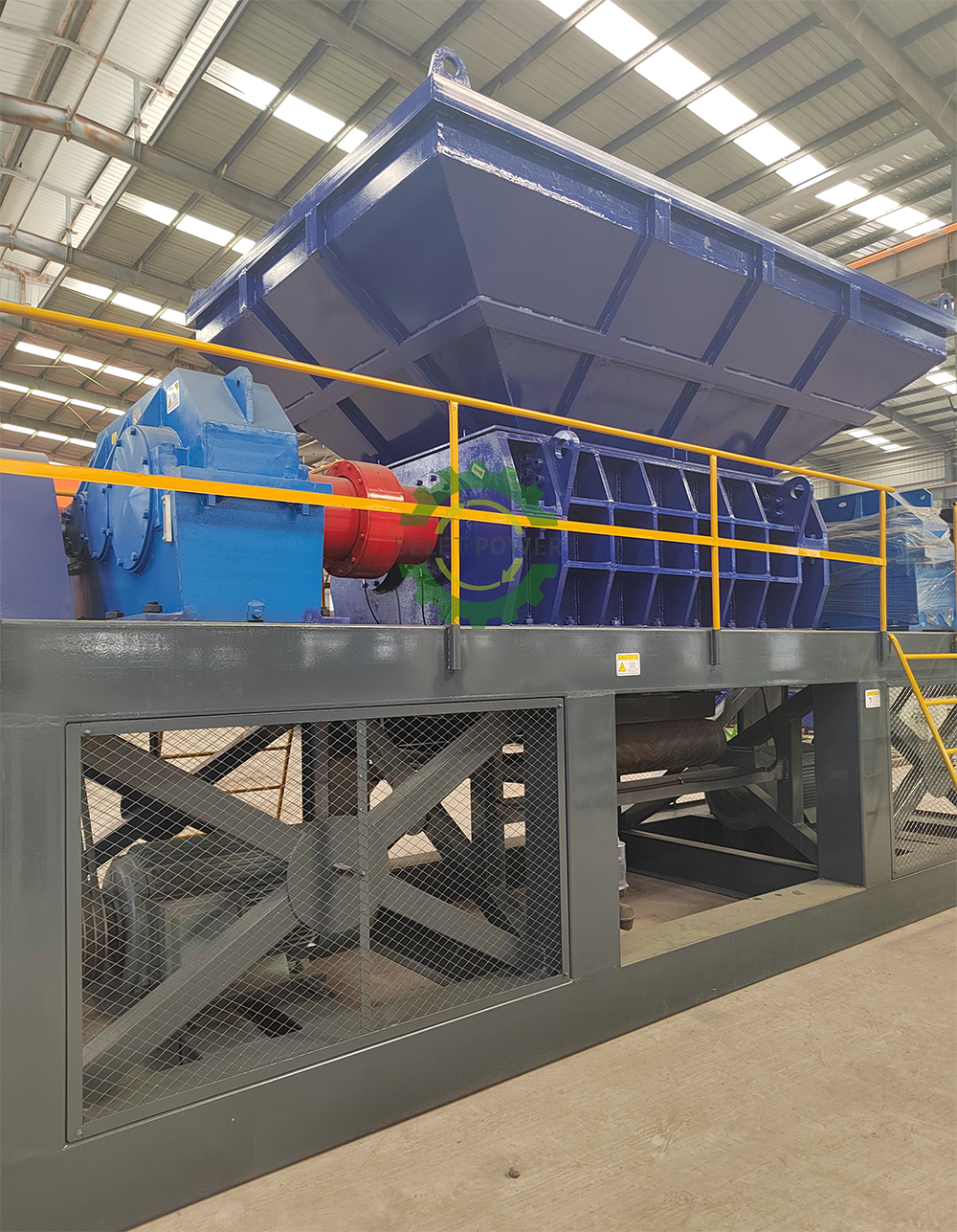

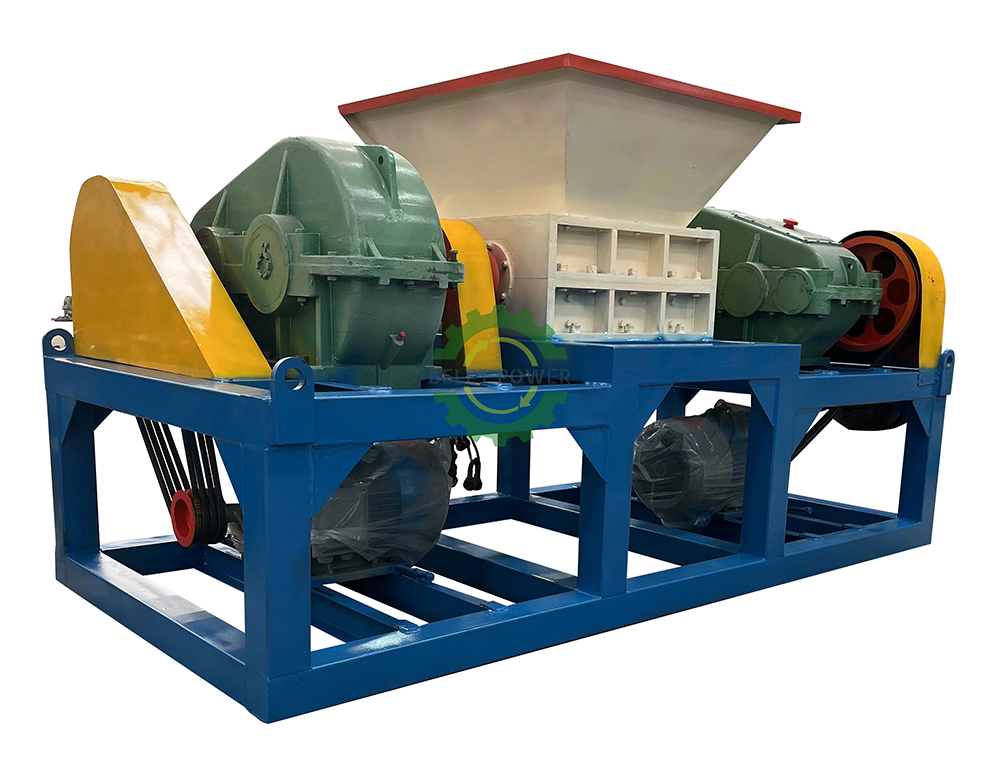

The double shaft shredder is a machine composed of a shredding blade group, a bearing box, a box bracket, a feeding system, a power system, and an electrical control system. It can be configured with in feed conveying, out feed conveying and magnetic separation equipment.
Biomass raw materials:
1. A variety of hollow containers: plastic beverage cans, plastic buckets, iron, cans, packing boxes.
2. Waste household appliances: TV, washing machine, refrigerator shell.
3. Pipe: large pipes, pipe fittings, PE pipe.
4. Waste template: wooden pallets, plastic pallets, truck pallet.
5. Waste tires: car tires, truck tires.
6. Scrap metal: car shell, aluminum die casting scraps, engine shell, gear boxes, lead as well as the steel plate with less than 5mm thickness.
7. Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste.
8. The food waste: garbage, animal carcasses, RDF derivatives, biological straw, garden garbage.
The features:
1. Heavy-duty construction and efficient performance are determined by the precisely processed combined frame made of extra-thick plates.
2. Wide angle, hexagonal prism of power slewing axis; large hopper with big caliber for feeding large material.
3. It adopts PLC control system, automatic overload protection and auto reverse switch.
4. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation.
5. It can be adjusted according to customer specific requirements for throughput volume, material to be processed.
The advantages:
1. Double blade shaft mechanism, using multiple multi jaw cutting tools and coordinating with the tool shaft for multi angle changes, saving cutting effort, strong cutting force, and demonstrating strong crushing ability.
2. The motor passes through the gearbox transmission system to create a transmission structure, making it operate at low speed and high torque, achieving a crushing effect.
3. The large transmission wheel is made of special steel and has undergone heat treatment hardening, resulting in a long service life.
4. The gearbox adopts an oil inlet pulley, which operates smoothly, has low noise, high torque, and is resistant to long-term operation.
5. The design of low speed and high torque provides lower noise and less dust, improving a good working environment.
Production process:

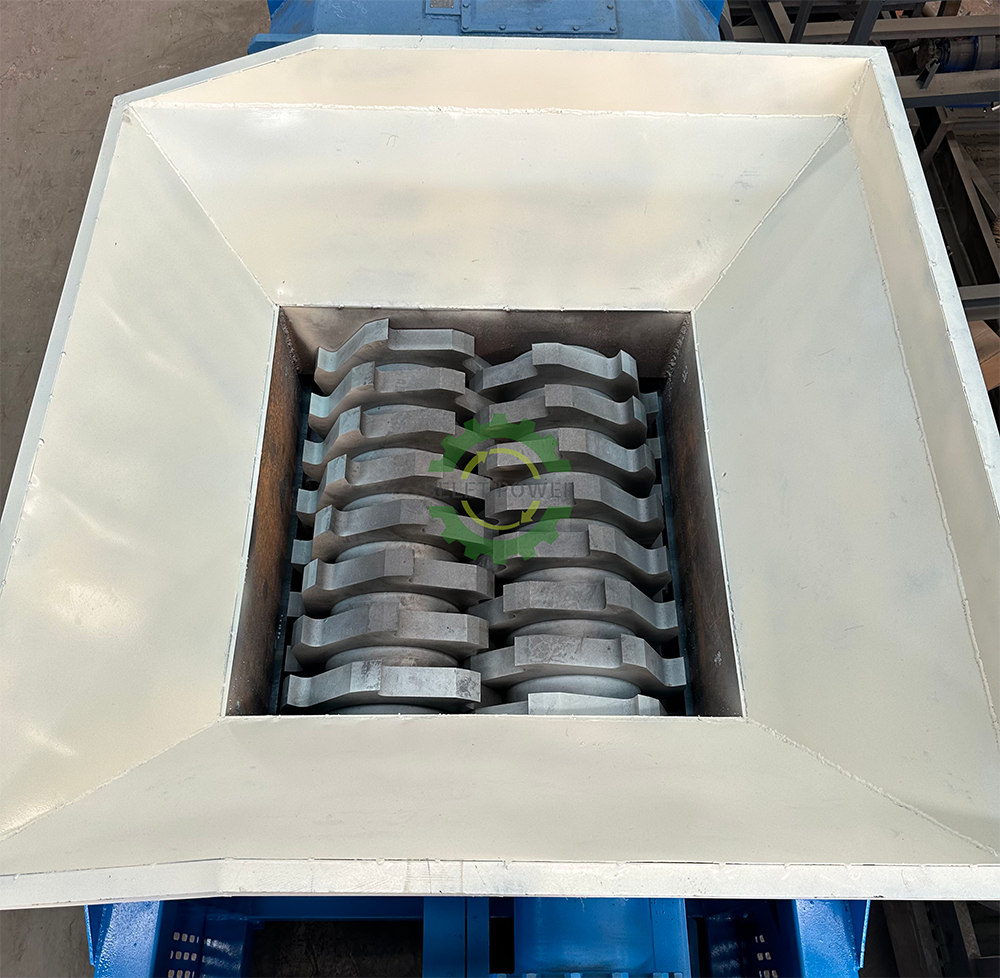

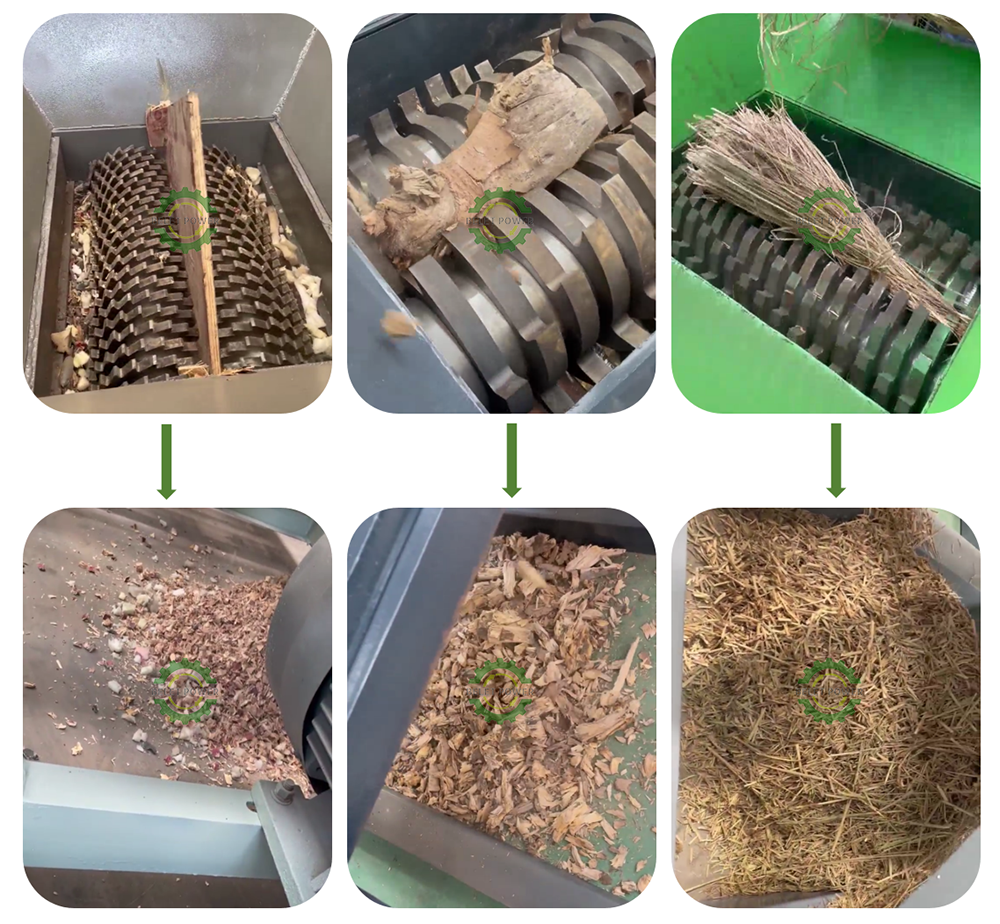

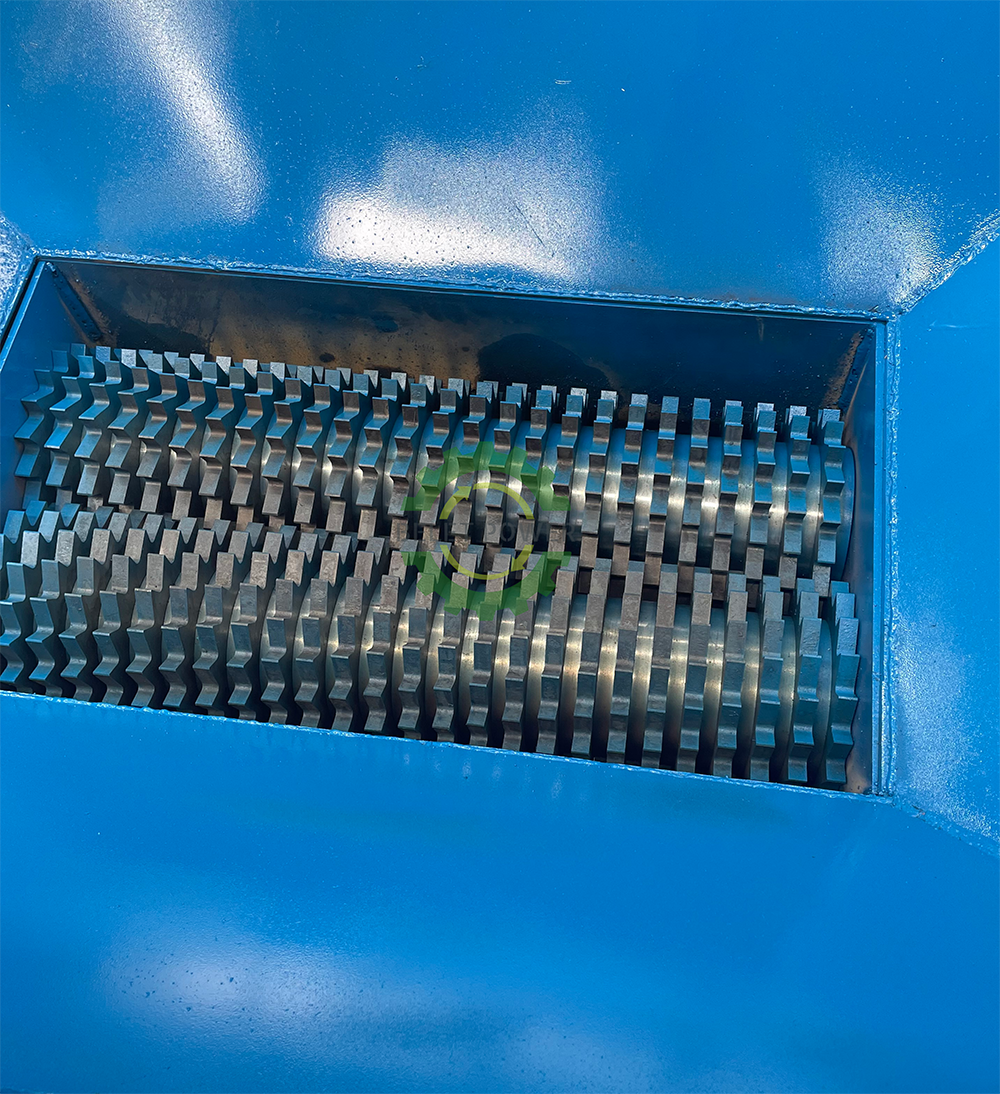

Double shaft shredder for wood is to cut and shred the materials through the relative rotating of the two sets of cutter shaft, the mutual shear ring among the blades of moving knives & the cutter heads and the distance sleeves. The outlet material control of double shaft shredder is adopted the network design, the width and length of outlet material is determined on the width of the cutter, and the distance of cutter heads. Two groups of cutter shaft is rotating on different speed which lead to the shearing and shredding materials simultaneously, it improves the efficiency of shredding.
The application:
The double-shaft shredder not only can crush all kinds of wood, also can meet the waste recycling requirements of various industries and is suitable for shredding thick and difficult-to-shred materials, such as: waste car shells, domestic garbage, plastics, metals, wood, waste rubber, packaging barrels, pallets, ton bags, waste plastics and other bulk materials. There are many types of recyclable materials, and the shredded materials can be directly recycled or further refined according to needs. It is suitable for applications in industries such as industrial waste recycling, medical recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic garbage recycling, plastic recycling, tire recycling, papermaking...
