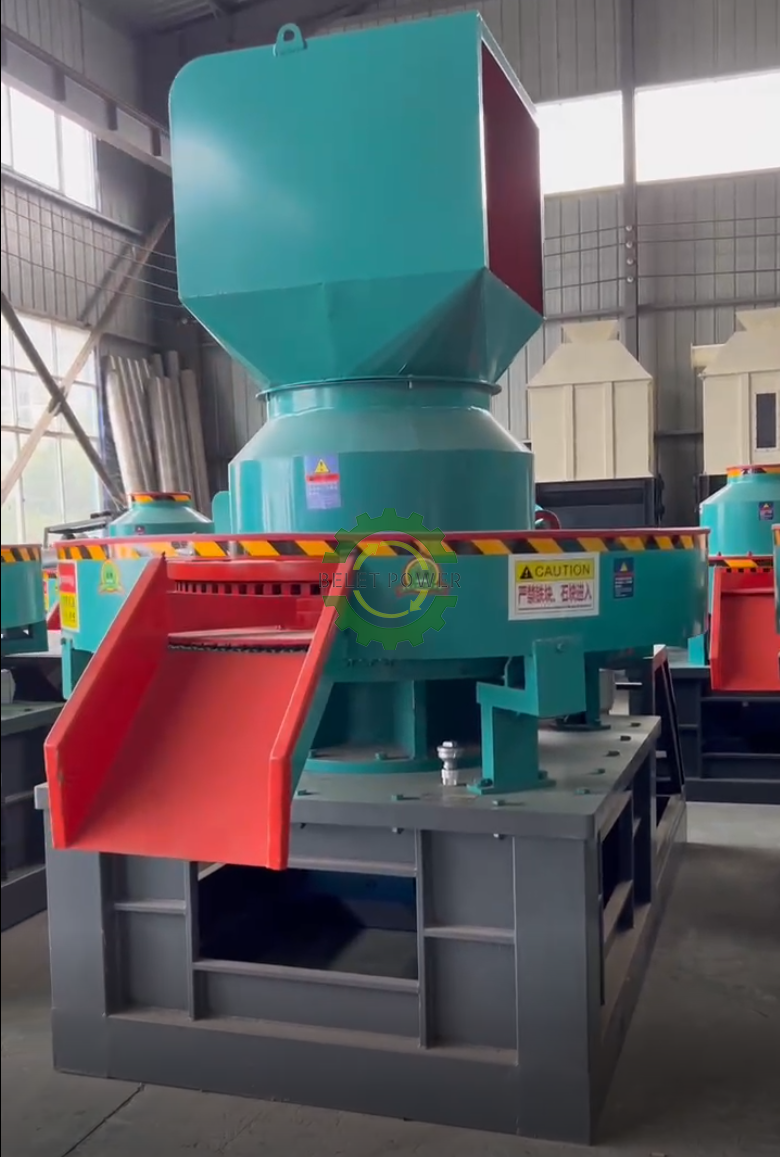

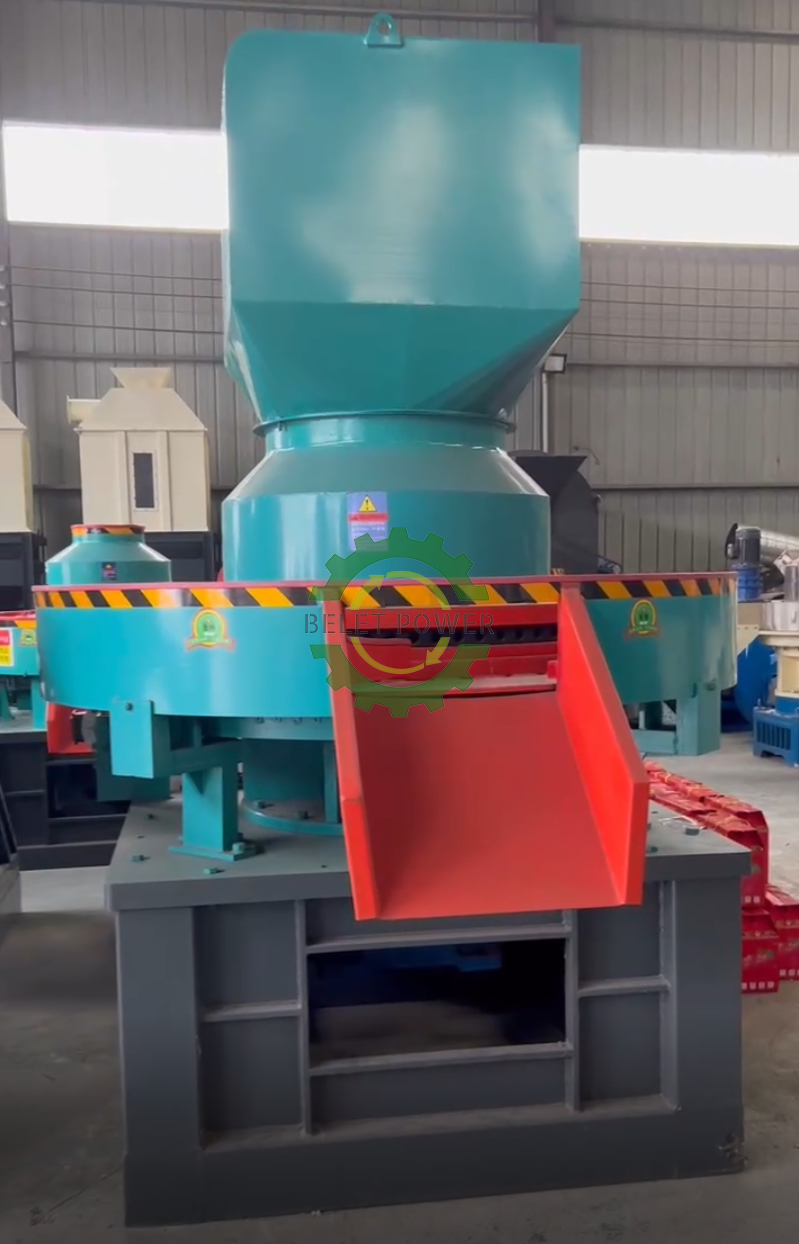

Biomass Fuel Briquettes Machine
The equipment adopts the reducer transmission mode, which avoids the belt loss of traditional equipment, power loss caused by the loss of pulleys, pulley maintenance and other problems; the reducer transmission mode has lower main motor power and greater torque. The output is more stable, the output is more stable, the maintenance is easier, the whole machine is overload protected, it is safe and labor-saving to use, and it is more energy-saving to use, achieving low energy consumption and high output.
The technical parameters:
Model | Power(kw) | Number of mold holes | Output(t/h) | Molding sizes(mm) | |
Biomass, straw | RDF Fuel | ||||
BT40 | 55 | 40 | 1.0-1.5 | 0.7-1.0 | 32*32 |
BT52 | 75 | 52 | 1.5-2.0 | 1.0-1.5 | 32*32 |
BT72 | 110 | 72 | 2.5-3.5 | 1.5-2.0 | 32*32 |
BT88 | 132 | 88 | 3.0-4.0 | 2.0-2.5 | 32*32 |
BT101 | 160 | 101 | 3.5-4.5 | 2.5-3.0 | 32*32 |
BT120 | 185 | 120 | 4.5-6 | 4.0-5.0 | 32*32 |
BT136 | 220 | 136 | 5.0-8.0 | 5.0-6.0 | 32*32 |
BT150 | 250 | 150 | 6.0-10 | 6.0-7.0 | 32*32 |
Biomass raw materials:
Waste textile, waste paper, waste pp bags, waste cloth, MSW waste, Industrial waste, coal, coke, semi-coke, charcoal, leather, plastic, fiber, rubber, wood, food waste...
The features:
1. Widely option on raw material, stick shape with different diameter.
2. The density, strength and hardness of products are very high.
3. The briquette machine with higher capacity and lower energy consumption.
4. Gasified incineration, mixed incineration and burnout treatment ensures low
emission standard of dust (lower than International standard).
5. The series of briquette machine is a new type of wood briquette machinery, the finished products are more solid.
The advantages:
1. Reasonable structure, simple operation, high efficiency production and reliable use.
2. This machine is suitable for molding of biomass fuels. It is an important device for the green environmental protection industry.

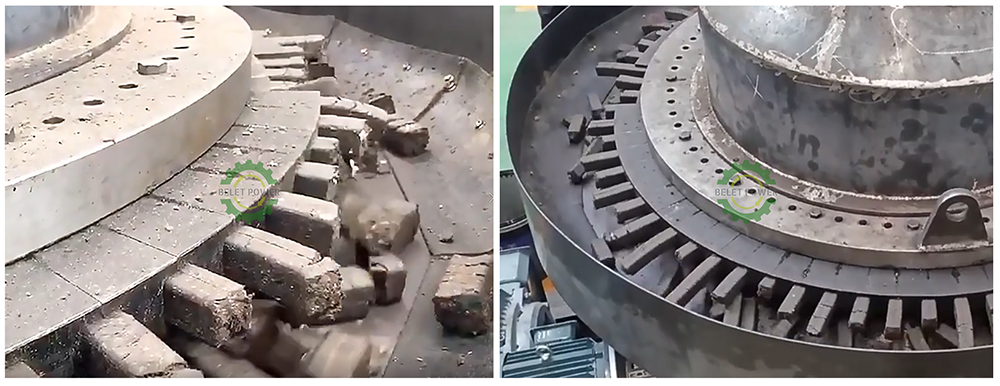

3. With the advanced feeding device and ring mold technology improvement, the discharge rate is faster under the premise of 100% forming rate. The increase of the discharge port makes the production cost lower under the same employment. The special design principle reduces the original power consumption by more than 50% and improves the output.
4. Molding die has a high temperature preheating function, a wide range of applications, and low moisture requirements for the material.
Production process:
The biomass fuel briquettes machine mainly uses the hydraulic principle, waste plastics, metals and other debris are pressed into blocks. The entire pressing process is automated, and the briquetting products can be directly sent to the crushing workshop for crushing without any auxiliary equipment. The main power of the briquetting machine comes from hydraulic pressure. When the hydraulic pressure reaches a certain pressure, it will push the piston on the main machine of the briquetting machine to squeeze the material out of the mold.
The biomass fuel briquettes machine’s making process could follow these steps: Feeding-- crushing--mixing--pressing-- drying--final product.
The application:
The biomass fuel briquettes machine has the characters of high calorific value, stable combustion, easy transportation, low secondary pollution and low dioxin emissions. Its widely used in drying engineering cements manufacturing, heat supply engineering, power generation engineering and other fields.
Waste derived fuel (RDF) technology is to remove non combustible material such as metal, glass or sand from domestic and industrial waste through crushing and sorting. Crush and dry the combustible materials in waste (such as plastic. Fiber, rubber, wood, and food waste), add additives, compact and form, and finally make the solid fuel.
