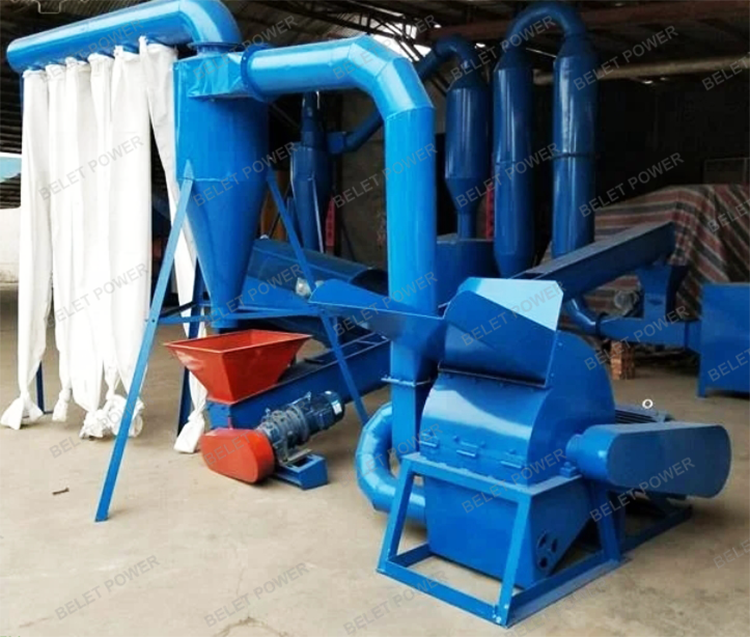

Hammer Mill

Hammer mill introduction:

Wood hammer crusher is widely used to crush small-sized materials with a diameter of no more than 50mm, such as branches, wood chips, cotton stalks, corn stalks, wheat straw, etc. Wood hammer mill is a kind of wood crusher. Wood crusher is a machine that crushes large-sized raw materials into powder. According to the different structures, wood crushers can be divided into wood chip crushers, hammer crushers and straw crushers, etc. If the size of your raw materials is greater than 5mm, the crusher will be an important part of producing briquettes, charcoal, pellets or other products.

Features of hammer mill:

1. The hammer crusher is used to grind biomass such as straw, stalks and wood chips, branches and other forest waste into powders less than 3-5mm, which are of suitable size before granulation and making briquette.

2. It is also an ideal agricultural machine, such as dry or freshly sown yam, peanuts, rice and other plants, husks, corn, wheat, beans of all grains.

3. Simple structure, easy operation, high efficiency and low power consumption.

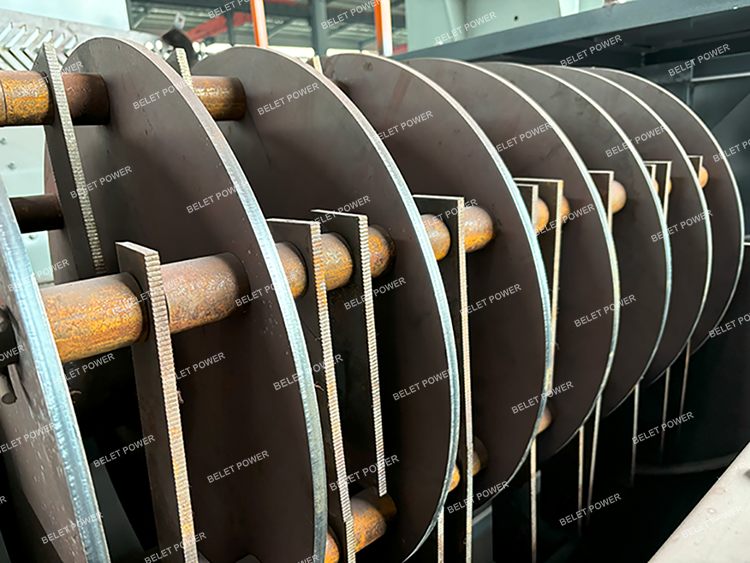

4. This hammer mill contains some rotors which are mounted by many hammers. The hammers swing with the rotors at high speed. Then the materials fed into the hopper are chopped by the hammers. Finally, the materials are discharged and screened by exhaust fans and screens.

In addition, we have many other kinds of wood crushers, so if there is any item that meets your needs, please feel free to contact me.

Advantages of pine chips hammer mill:

1. Automatic feeding of pine chips hammer mill: convenient operation and high production efficiency.

2. Smooth working: drum, continuous, dynamic balancing treatment, safe and reliable.

3. Durable: steel structure components, solid and reliable materials, high-power self-aligning bearings are used, and the service life is long.

4. Low cost and low power; good tool selection, double blades, service life can reach 500 to 1000 hours, and can be repeatedly re-sharpened.

5. Easy to move: trailer mobile crushers are produced according to customer needs, which is convenient for field production.

Main technical parameters:
