Belt Conveyor
Description of the structure:

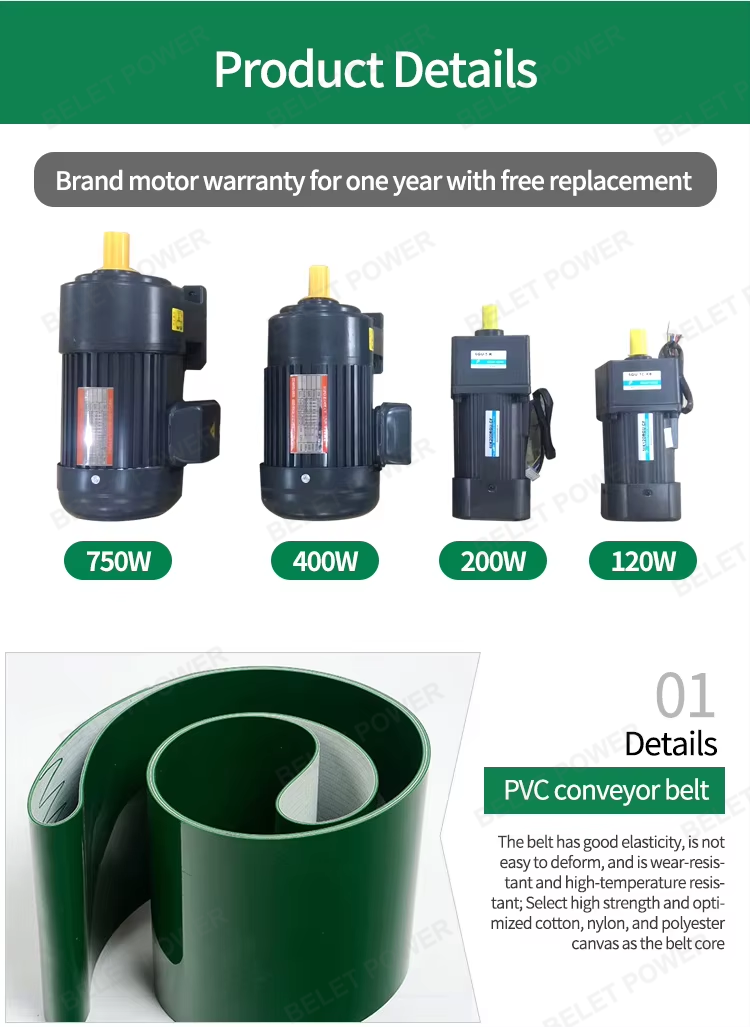

1. Belt part
-optional material: PU, PVC, Rubber, Anti-static
-compact structure
-adjustable elastic
-Firm with acid, corrosion and insulation
-Not easy ageing and high strength

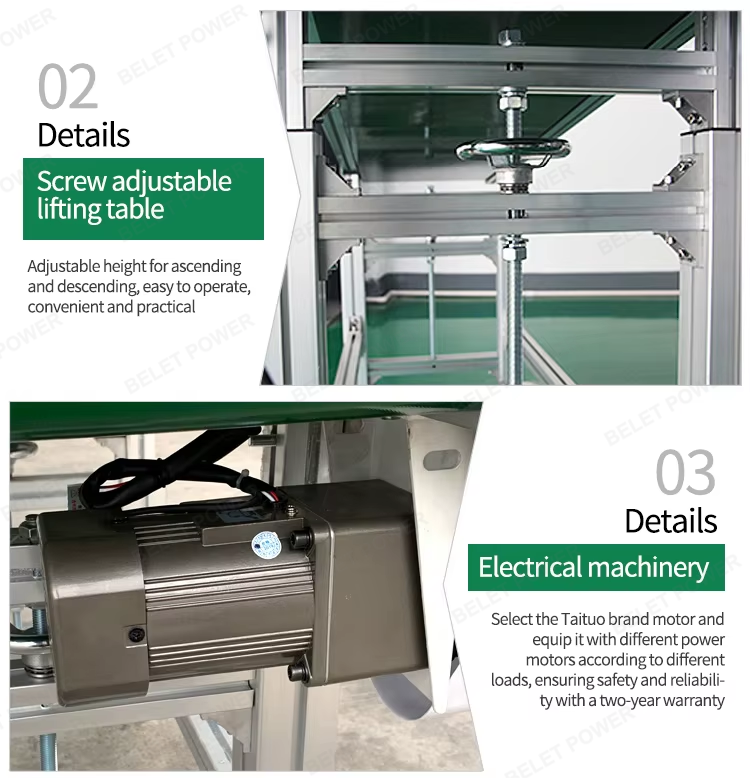

2. Motor part
-positive inversion of belt
-brand new motor
-reliable installation
-quiet and more smooth operation
-excellent energy conversion construction type
-long service life with professional brand motor

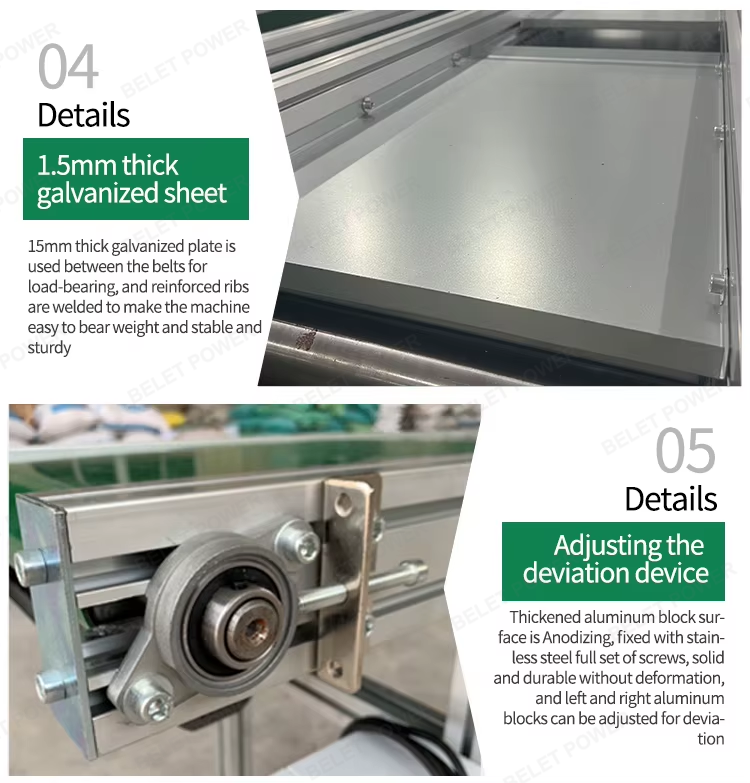

3. Support frame
-aluminum alloy, stainless steel or special request
-strong mechanical strength
-stable operation and extensively insensitive to jarring or vibration
4. Fixed type
-removability with wheels
-fixed feet on the ground or with floor element with no moving

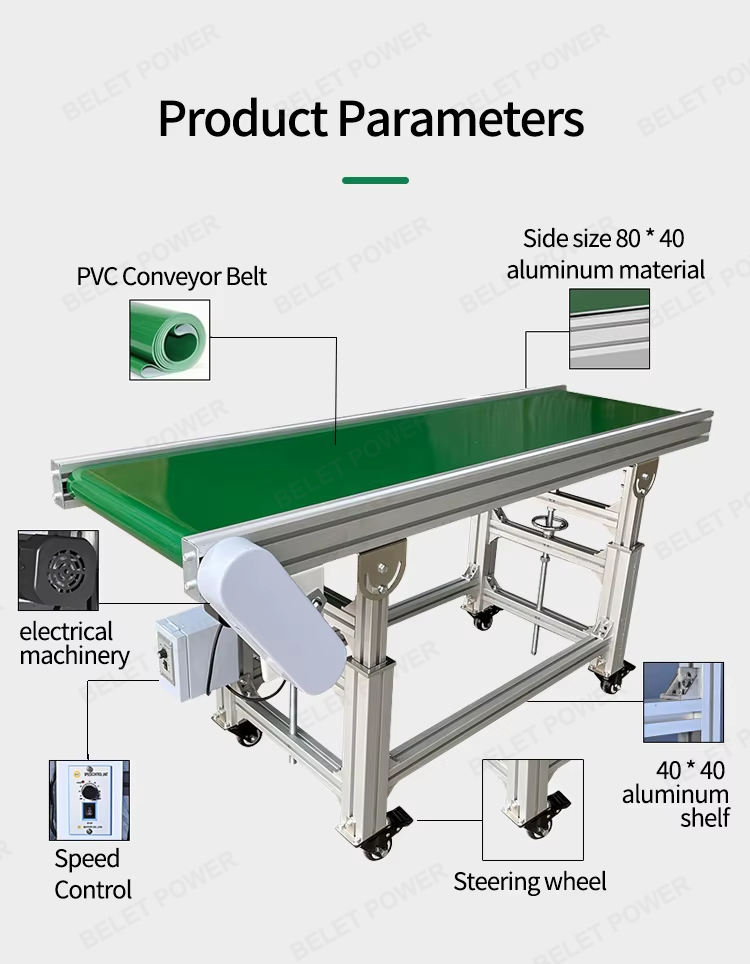

Parameters:
Name | Belt Conveyor |
Belt Material | PU, PVC, Rubber or other |
Feature | Strong and Beautiful Light Weight Easy to Install Running Smoothly |
Usage | Loading and Unloading |
Machine Height | 900mm Adjustable |
Size | Customized |
Material | Steel /Stainless Steel/ Aluminum |
Conveyor Width | 50mm-1800mm |
Conveyor Height | 0.9-1.5m |
Power | 90W/220V or Customized |
Speed | 5-10m/ min or Customized |
♦Main functions of sidewall cleated belt conveyor:
1. The apron belt conveyor is continuous conveying equipment for bulk material, it use the belt which has corrugated raised edge
And transverse diaphragm, therefore particularly suitable for large transmission angle.
2. Corrugated belt conveyor convey all kinds of material whose density is 0.5-2.5 t/m3 in the temperature-19 °C ~ + 40 °C.
3. The inclined angle is between 0 and 90°.
♦Application range of sidewall cleated belt conveyor
Food, metallurgy, coal, mine, dock, environmental protection, grain, chemical industry, building materials, water and electricity.
